Simulation

Simulation is the process of modeling the electrical or logical behavior of a circuit before fabrication.
It allows designers to validate functionality, performance, and timing under different conditions without building the physical chip.

Simulations can occur at multiple abstraction levels — from high-level logic to detailed transistor-level analysis — depending on the design stage and domain (digital or analog).

Why simulation matters

• Detects design errors early in the flow, before fabrication.
• Validates that circuits meet functional and performance specifications.
• Provides insight into timing, noise, and power behavior.
• Enables corner, Monte Carlo, and mixed-signal analysis.

Simulation bridges specifications and implementation, guiding iterative refinement throughout the design process.

Types of simulation

Level	Description	Typical Tools
Behavioral / RTL	Logical verification of functionality using HDL (Verilog/VHDL).	Verilator, Icarus Verilog, GHDL
Gate-level	Timing-aware simulation of synthesized netlists.	Verilator, GTKWave
Transistor-level	Device-level analysis using circuit equations.	Ngspice, Xyce
Post-layout	Includes parasitics for realistic performance prediction.	Ngspice, Magic extraction, KLayout xRC
Mixed-signal	Co-simulation of analog and digital blocks together.	Ngspice + Verilator, Xyce + Icarus

Digital simulation

Digital simulations verify that RTL code behaves as intended before synthesis.
They are fast, logic-based, and can run thousands of test vectors efficiently.

Process

1. Write the RTL design (Verilog/VHDL).
2. Create a testbench that applies inputs and monitors outputs.
3. Run the simulation using tools like Verilator or Icarus Verilog.
4. Visualize waveforms using GTKWave or similar viewers.

Example — Simulating a Counter in System Verilog

// counter.sv
module counter(
    input clk,
    input rst,
    output reg [3:0] count
);
    reg [3:0] next_count;

    always @(*) begin
        next_count = count + 4'd1;
    end

    always @(posedge clk or posedge rst) begin
        if (rst)
            count <= 4'd0;
        else
            count <= next_count;
    end
endmodule

// testbench.v
module testbench;
   reg clk, rst;
   wire [3:0] count;

   counter DUT (.clk(clk), .rst(rst), .count(count ));

   initial begin
      $dumpfile("counter.vcd");
      $dumpvars(0, testbench);
      rst = 1;
      #10;
      rst = 0;
      repeat (16) begin
         clk = 1; #5; clk = 0; #5;
      end
      $finish;
   end
endmodule

This testbench toggles the clock and reset signals, recording all transitions to a .vcd file, which can then be inspected with Surfer to verify correct counting behavior.

Simulation results

[Verilator Documentation](https://verilator.org/)
[Icarus Verilog Documentation](http://iverilog.icarus.com/)
[VSD – Digital Simulation Basics (YouTube)](https://www.youtube.com/watch?v=7JQh3HTuPJk)

Analog simulation

Analog simulation focuses on continuous electrical behavior — voltage, current, gain, noise, and stability. It is based on solving nonlinear differential equations derived from the transistor models defined in the PDK.

Process

1. Design the schematic in Xschem or a similar tool.
2. Generate a SPICE netlist using the PDK device models.
3. Run simulations using Ngspice or Xyce.
4. Analyze waveforms and frequency responses in tools like plot, Bokeh, or Matplotlib.

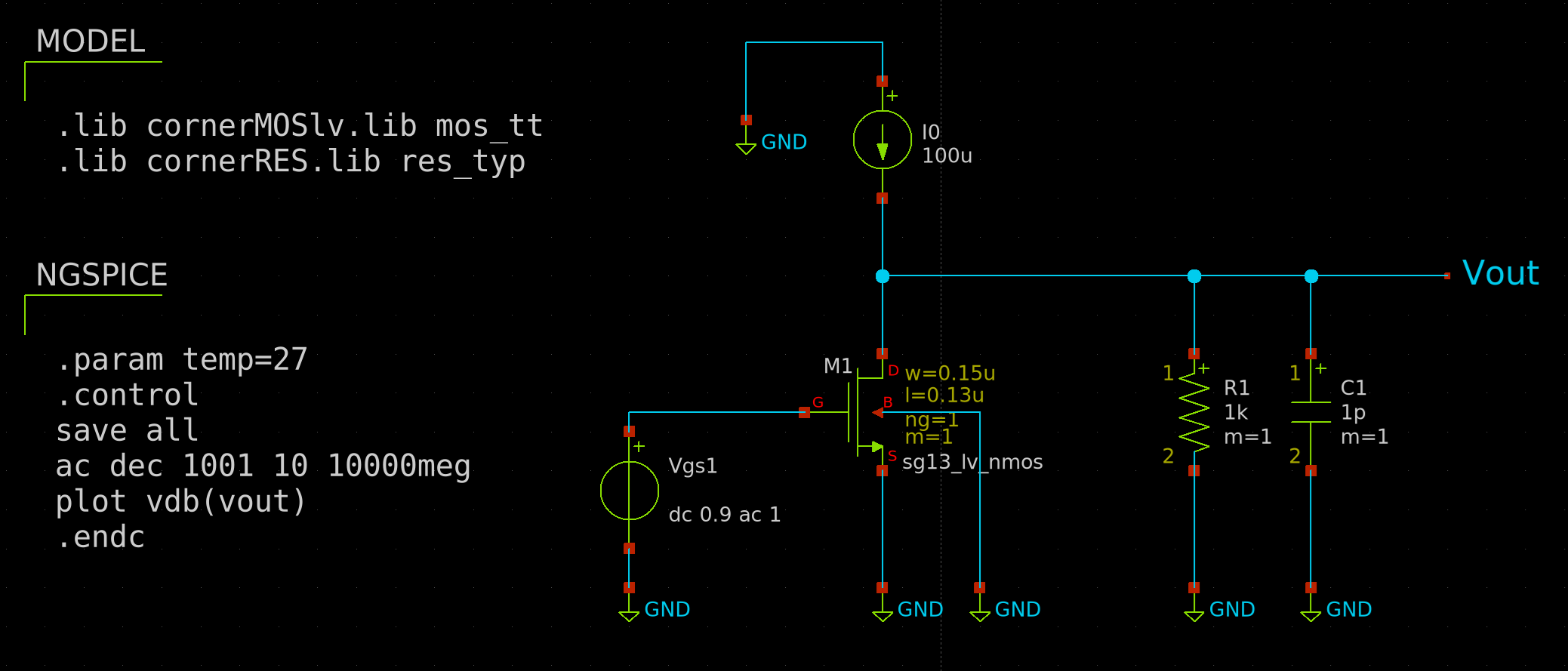

Example — Simulating a Common Source Amplifier

Visualization of the synthesized netlist of the 4-bit full adder.

**.subckt cs
Vgs1 net1 GND dc 0.9 ac 1
XM1 Vout net1 GND GND sg13_lv_nmos w=0.15u l=0.13u ng=1 m=1
I0 GND Vout 100u
R1 Vout GND 1k m=1
C1 Vout GND 1p m=1
**** begin user architecture code

.lib cornerMOSlv.lib mos_tt
.lib cornerRES.lib res_typ

.param temp=27
.control
save all
ac dec 1001 10 10000meg
plot vdb(vout)
.endc

**** end user architecture code
**.ends
.GLOBAL GND
.end

Visualization of the synthesized netlist of the 4-bit full adder.

This SPICE simulation models a simple NMOS amplifier. The output waveform shows how the transistor amplifies and inverts the input signal over time.

[Ngspice Documentation](https://ngspice.sourceforge.io/docs.html)
[Xschem Tutorial – Analog Simulation](http://xschem.sourceforge.net/stefan/index.html)
[VSD – SPICE Simulation for Beginners (YouTube)](https://www.youtube.com/watch?v=0sZC5nZKm4Y)

Post-layout and mixed-signal simulation

Once routing and parasitic extraction are complete, post-layout simulations verify that performance metrics (speed, gain, delay, etc.) remain within spec. These simulations include resistance (R) and capacitance (C) effects from the layout geometry.

• Digital post-layout: performed with timing back-annotation (SDF, SPEF).
• Analog post-layout: run on extracted SPICE netlists from Magic or KLayout.
• Mixed-signal: combines both, using co-simulation frameworks (e.g., Ngspice + Verilator).

- {doc}`../concepts/parasitics_extraction`
- {doc}`../mixed_signal/analog_on_top`
