Librelane Flow

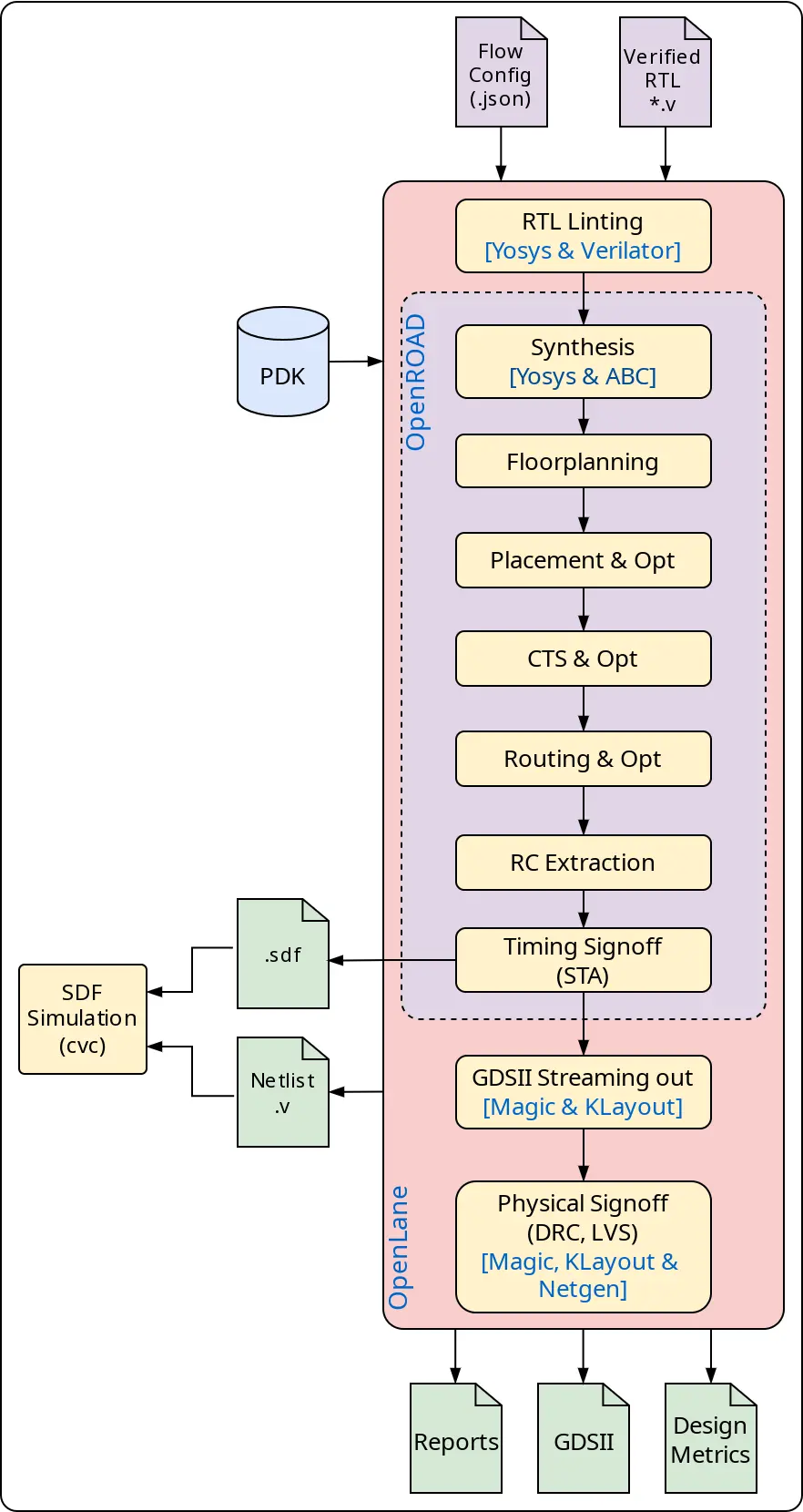

LibreLane is a powerful and versatile infrastructure library that enables the construction of digital ASIC physical implementation flows based on open-source and commercial EDA tools. It includes a reference flow (Classic) that is constructed entirely using open-source EDA tools –abstracting their behavior and allowing the user to configure them using a single file (See Figure 1). LibreLane also supports extending or modifying flows using Python scripts and utilities. See the official documentation

Librelane Classic Stepsd

Each of the following sections corresponds to one major stage of the LibreLane Classic flow. Click on each stage title to explore its specific configuration, tools, and outputs.

steps/rtl-linting

1. Verilator.Lint
2. Checker.LintTimingConstructs
3. Checker.LintErrors
4. Checker.LintWarning

steps/synthesis

5. Yosys.JsonHeader
6. Yosys.Synthesis
7. Checker.YosysUnmapedCells
8. Checker.YosysSynthChecks
9. Checker.NetlistAssignStatements
10. OpenROAD.CheckSDCFiles
11. OpenROAD.CheckMacroInstances
12. OpenROAD.STAPrePNR

steps/floorplaning

13. OpenROAD.Floorplan
14. Odb.CheckMacroAntennaProperties
15. Odb.SetPowerConnections
16. Odb.ManualMacroPlacement
17. OpenROAD.CutRows
18. OpenROAD.TapEndCapInsertion
19. Odb.AddPDNObstructions
20. OpenROAD.GeneratePDN
21. Odb.RemovePDNObstructions
22. Odb.AddRoutingObstructions

steps/placement

23. OpenROAD.GlobalPlacementSkipIO
24. OpenROAD.IOPlacement
25. Odb.CustomIOPlacement
26. Odb.ApplyDEFTemplate
27. OpenROAD.GlobalPlacement
28. Odb.WriteVerilogHeader
29. Checker.PowerGridViolations
30. OpenROAD.STAMidPNR
31. OpenROAD.RepairDesignPostGPL
32. Odb.ManualGlobalPlacement
33. OpenROAD.DetailedPlacement

steps/cts-optimization

34. OpenROAD.CTS
35. OpenROAD.STAMidPNR-1
36. OpenROAD.ResizerTimingPostCTS
37. OpenROAD.STAMidPNR-2

steps/routing

38. OpenROAD.GlobalRouting
39. OpenROAD.CheckAntennas
40. OpenROAD.RepairDesignPostGRT
41. Odb.DiodesOnPorts
42. Odb.HeuristicDiodeInsertion
43. OpenROAD.RepairAntennas
44. OpenROAD.ResizerTimingPostGRT
45. OpenROAD.STAMidPNR-3
46. OpenROAD.DetailedRouting
47. Odb.RemoveRoutingObstructions
48. OpenROAD.CheckAntennas-1
49. Checker.TrDRC
50. Odb.ReportDisconnectedPins
51. Checker.DisconnectedPins
52. Odb.ReportWireLength
53. Checker.WireLength
54. OpenROAD.FillInsertion
55. Odb.CellFrequencyTables

steps/parasitic-extraction

56. OpenROAD.RCX
57. OpenROAD.STAPostPNR
58. OpenROAD.IRDropReport

steps/gds-export

59. Magic.StreamOut
60. KLayout.StreamOut
61. Magic.WriteLEF
62. Odb.CheckDesignAntennaProperties
63. KLayout.XOR
64. Checker.XOR

steps/verification

65. Magic.DRC
66. KLayout.DRC
67. Checker.MagicDRC
68. Checker.KLayoutDRC
69. Magic.SpiceExtraction
70. Checker.IllegalOverlap
71. Netgen.LVS
72. Checker.LVS
73. Yosys.EQY
74. Checker.SetupViolations
75. Checker.HoldViolations
76. Checker.MaxSlewViolations
77. Checker.MaxCapViolations
78. Misc.ReportManufacturability
